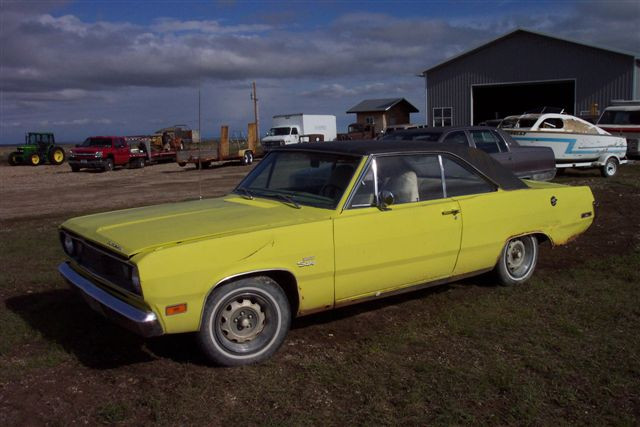

Original 318 auto, GY3 Curious Yellow 71 Plymouth Scamp. White bucket interior, console, black vinyl top. This one had drums all the way around, a 904, and a 7 1/4" rear. Moving to a 5.7 hemi/545RFE w/ 8 3/4, AlterKtion and street lynx rear setup. This will be Dana's first car. She helped pick it out, and is doing a lot of the work. For the body, the Scamp is getting a new roof skin (OEM junkyard piece), and a pile of new parts including...
- AlterKtion front suspension system
- Street Lynx rear 4 link setup
- Wilwood front/rear 12" disc brakes (WIL-140-1044-B & WIL-140-7144)
- AMD full tinted glass kit (499-2067-TS)
- Full quarters (700-2070-R/L)
- Full 1pc trunk floor (800-1370)
- Trunk extensions (840-1070-R/L)
- Outer wheelhouses (770-1067-R/L) - These will be used for patches
- RH front floor pan (405-1067-R)
- Rear valance (960-2070)
- Door hinge set (520-1067-S)
- Front bumper (100-1370)
- Rear bumper (990-2070)
- Rear window trim set (670-2067-S)
 |  |
 |
 |  A padded replacement vinyl top was added to the car at some point which once cut up, it pulled a lot of moisture and ruined the roof. |  |
 |  Possibly flooded at some point. Frame rails both front and rear were full of mud. |  Outer wheelhouse (770-1067-R) used as a patch. |
 Holes drilled to plug weld the 800-1370 down. |  The trunk floor was placed in the car and primer was used to mark the rail locations. |  |
 Dana learning how to weld! |  ... and pointing to her favorite. |  |
 |  |  |
 |  OEM roof clamped back down |  545RFE's lack of fitment to the torsion bar xmember. |
 |  First cut at the floor |  Crossmember out of the way to allow the trans to come up into place |
 Pass through tube welded into the frame connectors for the E brake cable |  |  |
 Brace in place to tie the crossmember sides back together |  |  |
 |  New fabricated crossmember/mount for the trans using a #2659 mount |  |
 Test fitting the original console |  |  Shifter mount bracket lowered as much as possible |
 Shifter uses a 42" cable (#C95-042) and ends (#842 and #CW3) from chassisshop.com. The original 545RFE trans cable mount had to have it's hole size modified to work with the new cable. The shifter throw/detents line up with the detents for the trans. |  A Jeep dipstick tube (53013685-AF) and dipstick (53013686-AD) were used. The tube was modified to closely follow the back of the head to clear the firewall. |  |
 Street lynx rear 4 link setup |  |  |
 |
|  |
 |  |  |
 |  |  |
 |  |  Black bedliner on the bottom. Tinted bedliner in the trunk. |
 Steve Barger at Finish Line Collision Repair in Montrose, CO sprayed the GY3 for us. |  |  |
 |  |  |
 |  |  |
 |  |  |
 |  |  |
 New HEMI emblem in the same place as the original similarly sized Valiant emblem. |  |  |
 Freshened up A body 8 3/4 with new Yukon 21041 5x4.5" axles, green bearings, 489 case sure grip 3.23's, large UJ yoke, street lynx mounts and wilwood 12" disc setup. |  |  |
 |  |  |
 |  Our donor "low mile": 5.7Hemi turned out to be a mess and required a full rebuild. |  |
 |
|  |
 |  |  |
 |  |  |
 |  |  |
 |  |  |
 |  |  |
 | ||
Need to shoot that lower radiator support still...
Awaiting the radio/heater bezels...
